Hayward TriStar Full-Rate Pool Pump

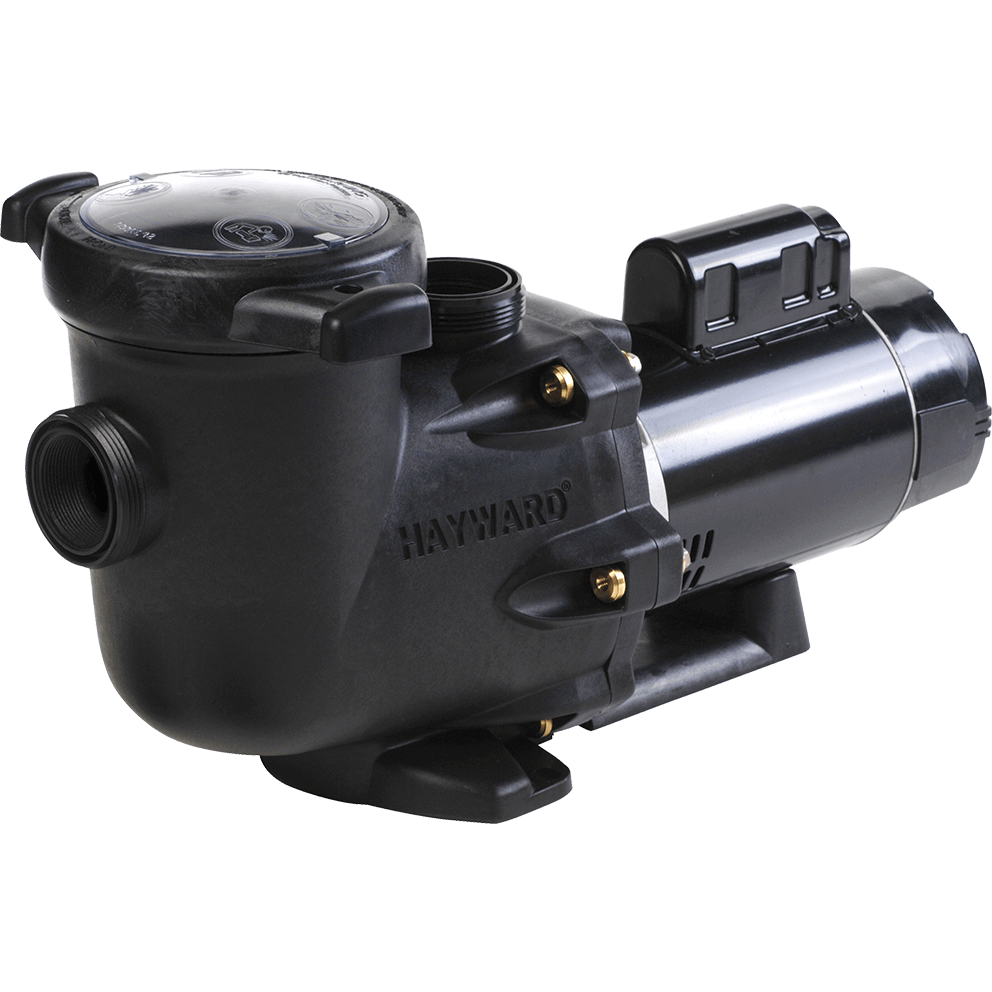

Angled front three quarter view of the Hayward TriStar Full-Rate Pool Pump, shown isolated on a transparent background, featuring a heavy-duty black composite pump housing with a large integrated strainer pot positioned on the left side and a cylindrical electric motor extending horizontally to the right. The strainer housing has a smooth, rounded profile with a wide clear polycarbonate lid on top, secured by two thick black ergonomic locking tabs positioned opposite each other for tool-free removal. The transparent lid reveals the internal basket area beneath and includes moulded safety markings and directional icons. A threaded front suction inlet is visible on the left face of the strainer housing, while a vertically oriented discharge outlet rises from the top rear of the strainer body, both sized for high-flow plumbing. The pump body displays the raised HAYWARD brand name moulded into the side of the housing. Four brass-coloured bolts evenly spaced around the volute secure the wet end to the motor assembly. The motor casing is smooth and cylindrical with a metallic dark finish, capped at the rear and supported by an integrated black base foot. The entire unit sits on a wide, moulded base designed for stable pad mounting, with subtle surface texture and reinforced contours visible along the housing. Angled front three quarter view of the Hayward TriStar Full-Rate Pool Pump with included plumbing unions displayed, isolated on a transparent background, showing the same black composite pump assembly with the strainer pot on the left and motor on the right, accompanied by two loose union fittings placed in front of the pump. The strainer housing features a large clear polycarbonate lid at the top with moulded warning symbols and two opposing black locking tabs for easy access to the no-rib debris basket inside. A threaded suction port is visible on the front face of the strainer, and a raised vertical discharge outlet extends upward behind the lid, both designed for 2 inch by 2.5 inch union connections. The pump volute is secured with evenly spaced brass-coloured fasteners, and the raised HAYWARD name is moulded into the side of the housing. The motor body is cylindrical with a smooth metallic dark finish and integrated ventilation near the rear, mounted on a sturdy black base foot. In the foreground, two black CPVC union assemblies are shown separately, each consisting of a short cylindrical tailpiece and a wide threaded locking collar, positioned upright to clearly show their internal openings and exterior threads, indicating quick installation and servicing compatibility with larger plumbing for improved hydraulic efficiency.
Pumps

TriStar

The Hayward TriStar Full-Rate Pool Pump features some of the industry’s most energy-efficient hydraulics and delivers exceptional flow, efficiency, and long-term value. Designed for straightforward installation, service, and maintenance, it also introduced the large no-rib strainer basket, making routine cleaning faster and simpler.

Higher flow rates allow the system to achieve strong performance while potentially stepping down pump horsepower compared to less efficient models. Standard 2-inch by 2½-inch union connections speed up installation and servicing, while the no-rib basket design improves debris release and extends time between cleanings with its extra leaf capacity. The pump pressure-tests up to 50 psi and self-primes up to 10 feet above water level, supporting dependable operation across a wide range of pool setups.

The Hayward Expert Line logo shown on a transparent background, featuring the words “EXPERT LINE” in bold, uppercase, sans serif lettering rendered entirely in solid black. The word “EXPERT” appears on the left, followed by a visually distinctive stylised “X” that is wider and more angular than the surrounding letterforms, acting as a central visual anchor within the logo. This stylised X is formed using sharp, intersecting diagonal strokes that create a strong, geometric appearance, subtly separating “EXPERT” from “LINE” while drawing emphasis to the centre of the logo. The word “LINE” appears to the right in matching black uppercase lettering, aligned on the same baseline with consistent stroke weight and spacing. There is no mention of the Hayward name within the logo, no colour accents, no gradients, no outlines, no shadows, no icons, and no additional graphic elements. The minimalist black typography relies on high contrast against the transparent background, ensuring clarity and legibility when overlaid on any surface while conveying a premium, professional, trade focused brand identity.

HAYWARD EXPERT LINE products can only be purchased through authorized Hayward distributors like Crown Spas & Pools. Exclusions, other terms, and conditions may apply.

  • Collection: In-Ground Collection
  • Application: Renovation, Aftermarket
  • Pool Type: In-Ground
  • Motor Type: ODP
  • Number of Speeds: Single Speed
  • Phase: Single Phase
  • Quick Clean Button Not included
  • Remote Mount Display Not included
  • Rotatable Display (1.1HP) Not included
  • Rotatable Display (5.1HP): Included
  • Twist Lock: Not included
  • Labor Warranty: Not included
  • Parts Warranty: 3-Years
  • WEF (1.1HP): 4.0
  • WEF (5.1HP): 1.7

Specifications

  • Collection: In-Ground Collection
  • Dimensions (1.1HP): 15.4" x 13.3" x 30.4"
  • Dimensions (5.1HP): 15.2" x 12.5" x 31.2"
  • Weight (1.1HP): 48 lb
  • Weight (5.1HP): 67 lb
  • Brand: Hayward
  • Channel: Expert Line
  • Available Variations (Sold Separately): 1.1HP & 5.1HP
  • SKU (1.1HP): SP3200X10
  • SKU (5.1HP): SP3250EE
  • GTIN (1.1HP): 610377435475
  • GTIN (5.1HP): 610377019224
  • DOE Compliant (1.1HP): Yes
  • DOE Compliant (5.1HP): N/A
  • Voltage at 60Hz (1.1HP): 208-230/115 V
  • Voltage at 60Hz (5.1HP): 208/230
