Hayward TriStar VS 950 Pool Pump

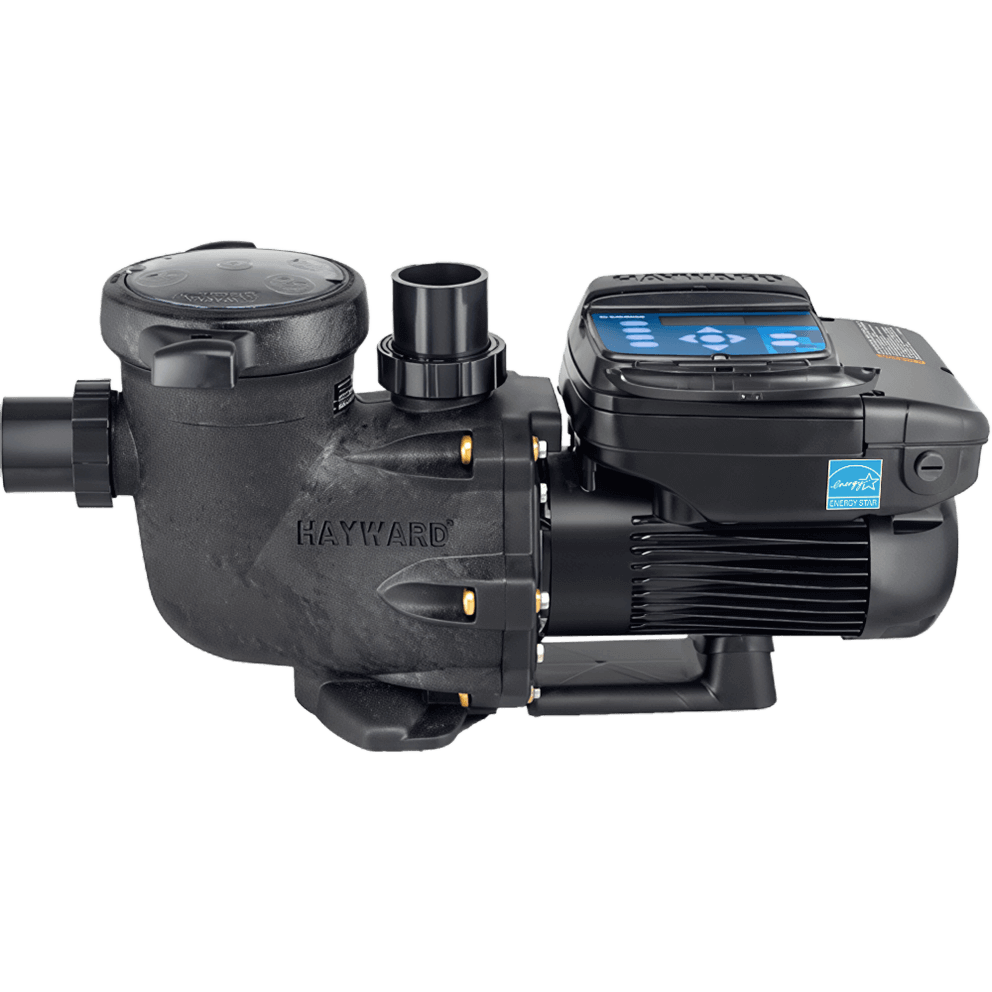

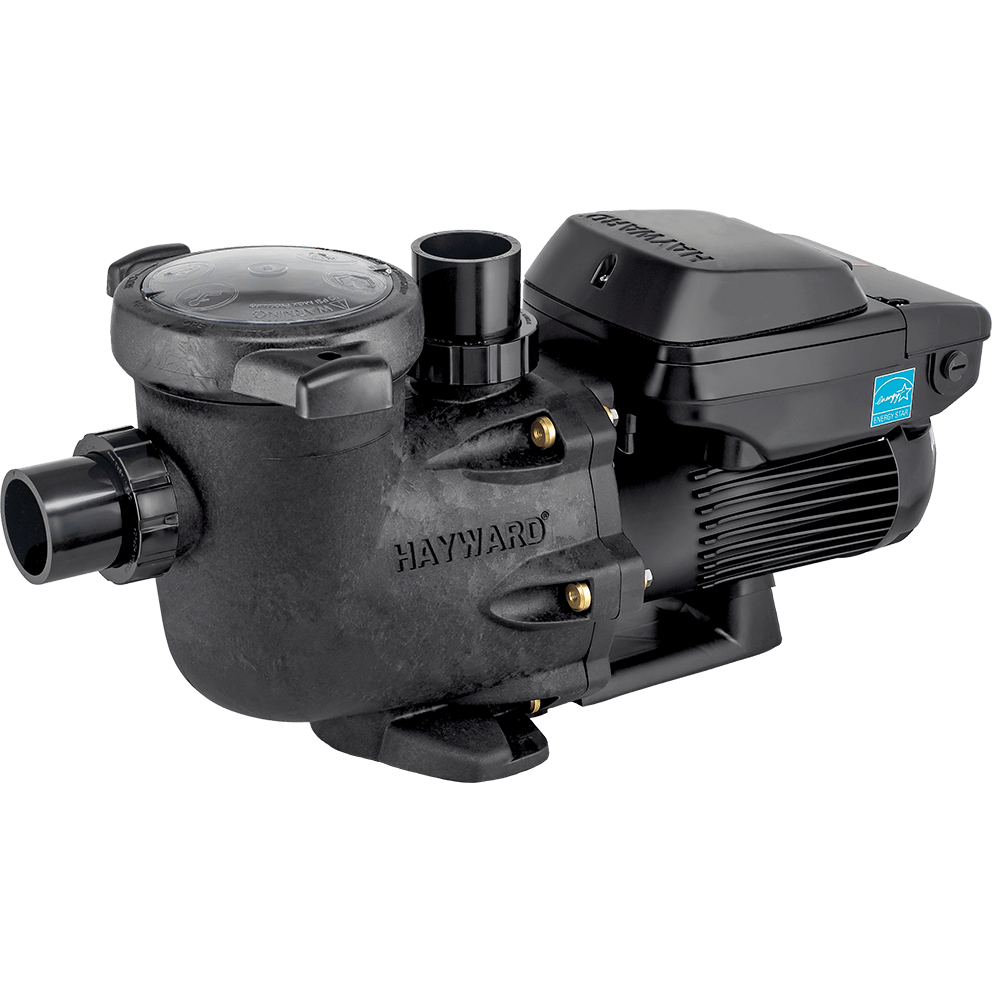

Angled product image of a Hayward TriStar VS 950 pool pump shown isolated on a transparent background, viewed from the front left at a three quarter angle. The pump features a large black strainer housing at the front with a clear see through lid that reveals the internal basket and locking mechanism. A horizontal intake union extends from the front face of the strainer housing, while a vertical discharge outlet rises from the top of the volute section just behind it. The volute is secured with visible fasteners and brass inserts around the circular flange, indicating heavy duty construction. The motor extends rearward in a horizontal orientation and is topped with a digital control module angled upward for easy access. Ventilation fins line the side of the motor housing, and an ENERGY STAR certification label is visible on the rear section, highlighting high efficiency performance. The pump sits on a reinforced base designed for retrofit alignment and vibration stability. Side profile product image of a Hayward TriStar VS 950 variable speed pool pump shown isolated on a transparent background, viewed horizontally from the left. The pump features a large black corrosion resistant housing with a tall cylindrical strainer basket positioned on the left, topped with a clear circular lid secured by integrated locking tabs. A horizontal threaded intake union extends from the front of the strainer housing, while a vertical discharge outlet rises upward from the top of the volute near the centre of the pump body. The central housing displays the moulded HAYWARD brand name in raised lettering. Extending to the right, the totally enclosed fan cooled motor runs horizontally and includes deep ventilation fins along its side and a compact rear motor shroud. A digital control module is mounted on top of the motor housing, angled slightly upward for visibility. The pump rests on a wide reinforced base designed for stability and retrofit compatibility, highlighting a high efficiency variable speed pump engineered for advanced energy savings and flexible installation. Front facing close up image of the Hayward TriStar VS 950 digital control interface shown isolated on a transparent background. The control panel is housed within a black protective enclosure embossed with the HAYWARD name above the screen. A rectangular digital display sits at the top centre of the interface, with a blue control panel beneath it featuring clearly labelled soft touch buttons. On the left side, vertically stacked buttons are labelled Speed 1, Speed 2, Speed 3, and Speed 4. At the centre, directional arrow buttons surround a circular Menu button, with plus and minus controls positioned above and below. On the right side, dedicated Stop Resume and Quick Clean buttons are grouped together. The hinged lower cover is visible beneath the panel, indicating weather protection and service access, emphasising fully programmable control and user friendly operation.
Pumps

TriStar VS 950

16.8" x 14.5" x 30.8"

The Hayward TriStar VS 950 Pool Pump delivers class-leading energy efficiency with proven TriStar performance. The 950 model builds on the TriStar VS platform with a long-life Viton pump seal and extended warranty coverage, while independent testing shows energy savings of up to 90 percent compared to single-speed pumps. It can operate as a standalone unit or integrate with a Hayward OmniHub controller for added automation.

An advanced hydraulic design and permanent magnet motor provide strong, efficient circulation while helping reduce annual energy costs. The pump supports flexible installation with standalone operation, Hayward automation, or third-party relay control, offers programmable scheduling with a wide 600 to 3450 RPM speed range, and includes base options that simplify retrofits for Pentair WhisperFlo and select Sta-Rite pump models.

The Hayward Expert Line logo shown on a transparent background, featuring the words “EXPERT LINE” in bold, uppercase, sans serif lettering rendered entirely in solid black. The word “EXPERT” appears on the left, followed by a visually distinctive stylised “X” that is wider and more angular than the surrounding letterforms, acting as a central visual anchor within the logo. This stylised X is formed using sharp, intersecting diagonal strokes that create a strong, geometric appearance, subtly separating “EXPERT” from “LINE” while drawing emphasis to the centre of the logo. The word “LINE” appears to the right in matching black uppercase lettering, aligned on the same baseline with consistent stroke weight and spacing. There is no mention of the Hayward name within the logo, no colour accents, no gradients, no outlines, no shadows, no icons, and no additional graphic elements. The minimalist black typography relies on high contrast against the transparent background, ensuring clarity and legibility when overlaid on any surface while conveying a premium, professional, trade focused brand identity.

HAYWARD EXPERT LINE products can only be purchased through authorized Hayward distributors like Crown Spas & Pools. Exclusions, other terms, and conditions may apply.

  • Collection: In-Ground Collection
  • Application: New Construction, Renovation, Aftermarket
  • Pool Type: In-Ground
  • Motor Type: TEFC
  • Number of Speeds: Variable Speed
  • Phase: Single Phase
  • Quick Clean Button Not included
  • Remote Mount Display Not included
  • Rotatable Display Not included
  • Twist Lock Not included
  • Labor Warranty Not included
  • Parts Warranty: 3-Years
  • WEF: 7.3/10.1

Specifications

  • Collection: In-Ground Collection
  • Dimensions: 16.8" x 14.5" x 30.8"
  • Weight: 65 lb
  • Brand: Hayward
  • Channel: Expert Line
  • Total HP: 2.7HP
  • SKU: SP32950VSP
  • GTIN: 610377340946
  • DOE Compliant: Yes
  • Voltage at 60Hz: 230/115 V
