Fox Ultimate Pool

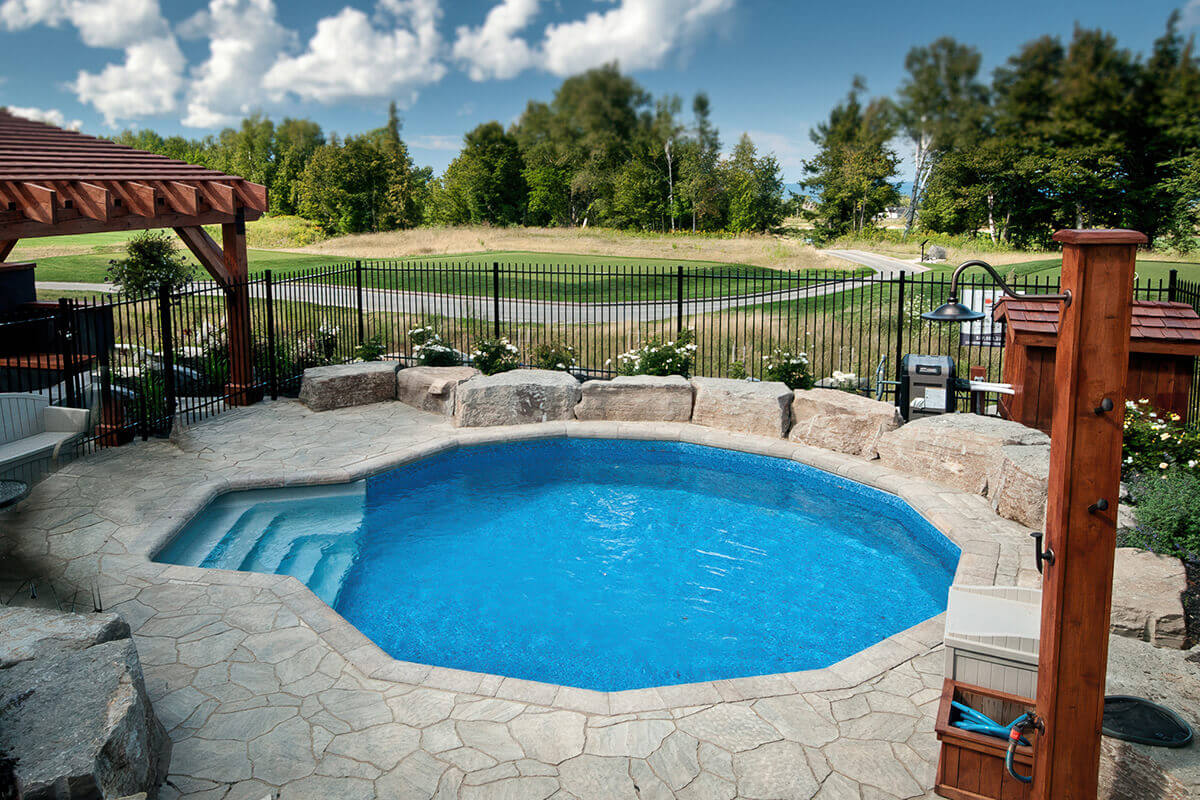

Fox Ultimate Pool installed inground in a Grecian shape, surrounded by natural flagstone decking and large boulder accents along the far side. White thermoplastic steps with wide treads are positioned in the near corner, descending into the clear blue water. A black metal fence encloses the pool area, with open green landscape and a tree-lined horizon extending beyond the fenced yard. Fox Ultimate Pool installed as an inground Grecian-shaped pool surrounded by textured stamped concrete decking, with white thermoplastic entry steps located at the shallow end on the left side, featuring a stainless steel handrail installed into the deck. The pool water is bright blue with a patterned vinyl liner visible at the waterline. A continuous metal safety fence runs along the perimeter of the pool area, backed by dense green trees creating natural privacy. Fox Ultimate Pool installed semi-inground in an oval shape with exposed tan steel wall panels and structural buttress supports visible along the sides. The raised installation is bordered by a curved stamped concrete patio with outdoor furniture and a basketball hoop near the shallow end. A white thermoplastic step system is installed at the front of the pool, leading into clear blue water. The backyard features a large lawn, potted plants, and a deck attached to a beige house in the background. Fox Ultimate Pool installed semi-inground with a raised stone retaining wall on one side, creating a recessed pool area illuminated by multiple warm deck lights. The oval-shaped pool features dark blue water reflecting the evening sky. A metal handrail leads into the pool at the shallow end. Surrounding landscaping includes trees, seating areas, and outdoor steps integrated into the stonework. Fox Ultimate Pool installed inground in an elongated oval shape, bordered by a large patterned paver patio. White thermoplastic steps at the near end lead into the bright blue water. The patio is furnished with black wicker seating and beige cushions, overlooking a landscaped yard with evergreen trees and open fields in the distance. Fox Ultimate Pool installed semi-inground with tan steel wall panels and structural supports fully visible on the exterior. The water appears deep blue, with landscaping featuring shrubs, flowers, and stacked stone borders surrounding the pool area. Adjacent patio furniture sits on flat stone pavers, and equipment is visible near the pool wall on the right side. Fox Ultimate Pool installed inground on a raised wooden deck overlooking a lake. The oval pool features light blue water with a patterned vinyl liner visible along the top edge. White thermoplastic entry steps extend from the near side into the shallow end. Black railings run along the deck perimeter with docks, boats, and tree-covered hills in the background. Fox Ultimate Pool installed inground in an elongated oval shape, surrounded by a beige concrete patio. A large beige umbrella shades part of the deck on the right, while a tall white slide at the far end leads into the pool. Multiple arched water features spray streams across the pool surface. Stainless steel handrails are installed at both ends for safe entry. Fox Ultimate Pool installed above ground in a round shape, featuring tan steel wall panels and brown top rails framing the bright blue water. The surrounding patio includes concrete slabs and a wooden deck area with outdoor seating. A metal ladder provides access at the far side, and colourful towels hang from a wooden privacy fence in the background. Fox Ultimate Pool installed fully above ground in a round shape on a grassy hillside, with tan steel wall panels and evenly spaced vertical support columns visible around the exterior. The brown top rails contrast with the deep blue water and patterned liner at the waterline. Rolling hills, trees, and an open rural landscape create a scenic backdrop.
Fox Pools

Ultimate Pool

Fox Pool’s Ultimate Pool offers the versatility needed to meet landscape requirements while bringing dream pool wish lists to life. The Ultimate is available in three standard shapes, Grecian, Oval, and Round, with multiple size options for each. Installations work seamlessly on-ground, in-ground, or above-ground.

Protection and Durability

Fox Pool constructs all Ultimate panels and buttresses from durable 52″ high, 14-gauge galvanized steel, then finishes them with a specialized powder coating to resist fading, scratching, and corrosion. Grecian and Oval configurations require submersion at least 24 inches into the ground and use buttress supports along with a concrete bonding ring to ensure long-term stability.

Ease of Installation

Each kit includes all required components, hardware, and clear step-by-step instructions. This streamlined approach supports a hassle-free build on site.

Customization

Optional upgrades add flexibility, style, and functionality to each pool design. Available options include a selection of top rail styles, thermoplastic steps for inground installations, and a wider range of liner patterns beyond the standard options.

Build More Pools

For seasoned pool professionals, the Ultimate takes significantly less time to complete than a fully custom in-ground pool build. For new builders or builders in training, this is an ideal build to get them started and gain experience. Simple builds + quick turnaround times = BUILD MORE POOLS in a season!

  • Installation Possibilities: Above-Ground, On-Ground, In-Ground
  • Available Shapes: Grecian, Oval, and Round
  • Material (Walls and Buttress Supports): 14-gauge Galvanized, Powder-Coated Steel
  • Top Rail: Included
  • In-Ground Quality Skimmer and Return: Included
  • Hardware: Included
  • Drive Stakes: Included
  • Joint Covers: Included
  • Water Bond Fittings: Included
  • Instruction Manuals: Included

  • Synthetic Wood or Aluminum Bullnose Top Rails
  • Snap-in Covers
  • Thermoplastic Steps (in-ground only)
  • Additional Liner Patterns

Specifications

  • Available Sizes (Round): 15', 18', 21', 24'
  • Available Sizes (Oval): 1524, 1530, 1732
  • Available Sizes (Grecian): 1224, 1430, 1632, 1836, 2040
  • Water Capacity (Round): 5000 gal (15'), 7710 gal (18'), 10020 gal (21'), 13770 gal (24')
  • Water Capacity (Oval): 8880 gal (1524), 11490 gal (1530), 14400 gal (1732)
  • Water Capacity (Grecian): 7720 gal (1224), 10860 gal (1430), 15000 gal (1632), 18300 gal (1836), 23630 gal (2040)
  • Standard Water Depth: 4'
  • Wall Height: 52"
